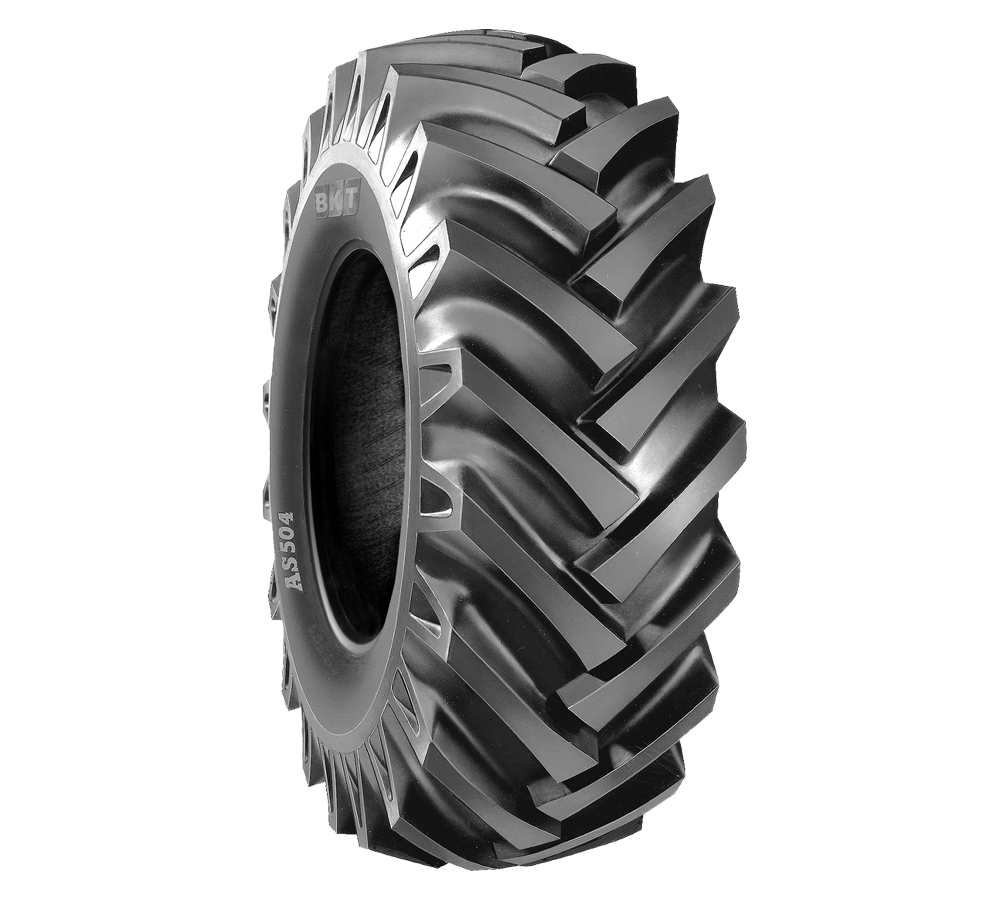

400/80-24 BKT AS 504 162A8 TL

Description

AS 504 is range of versatile bias-ply agro-industrial tyres used predominantly in soil tillage and transport operations. The tread pattern which offers excellent traction and self-cleaning properties also lends itself to use in other agro-industrial applications such as telehandlers working in farming environments with hay-harvesting and loading requirements. An HD (Heavy Duty) and "Special" (reinforced casing) version are available to meet specific end-user requirements when required.

Features

  • A range of versatile agro-industrial tyres for implement and soil tillage applications.
  • Traction pattern for good grip in muddy conditions and good self-cleaning properties.
  • Suitable for use in certain telehandler operations in farming environments.
  • HD and Special versions available across certain sizes.

Specification

Size
400/80-24
Equivalent Size 1
15.5/80-24
Brand
BKT
Pattern
AS 504
Load/Speed Index
162A8
TT/TL
TL
Construction
BIAS
Nominal Section Width
400
Profile
80
Rim
24
Recommended Rim
W13
Permitted Rim
W12 W14L
Section Width
394 mm
Overall Diameter
1262 mm
Static Load Radius
566 mm
Rolling Circumference
3655 mm
Tread Depth
40.00 mm
Max Load (KG)/Speed (KM/H) 1
4750/40
Inflation Pressure Bar
5.00
Specification 1
INDUSTRIAL
ECE 106
Yes
Warranty
8 YEARS
