23.1-26 12 PR BKT TR 135 153A6/149A8 R-1 TL

23.1-26 12 PR BKT TR 135 153A6/149A8 R-1 TL

Description

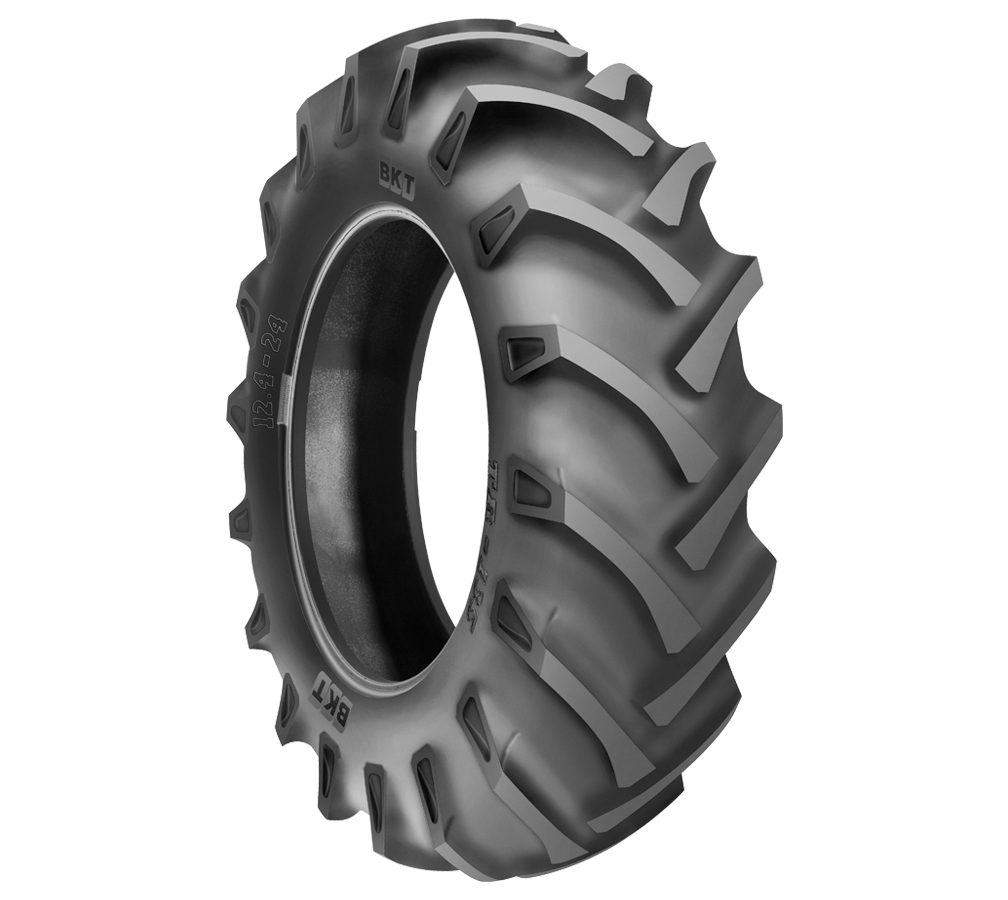

TR 135 is a versatile tyre suitable for soil tillage and spraying applications. Some sizes with this pattern are also suitable for use in excavator, harvesting and trailer applications. The lug design offers good traction, self-cleaning proprieties and stability across a wide variety of applications whilst an increased cut-and-chip resistance promotes tyre life cycle.

Features

  • Bias tyre suitable for tractors working in tillage, excavating, harvesting and trailer applications.
  • Excellent traction.
  • Good self-cleaning ability.
  • Overlapping lugs in the centre provide for stability on the road.

Specification

Application
REAR WHEEL TRACTOR
Size
23.1-26
Brand
BKT
Pattern
TR 135
Load/Speed Index
153A6/149A8
Ply Rating
12
TT/TL
TL
Construction
BIAS
Nominal Section Width
23.1
Rim
26
TRA
R-1
Recommended Rim
DW 20 B DW 20 A
Section Width
587 mm
Overall Diameter
1585 mm
Static Load Radius
700 mm
Rolling Circumference
4615 mm
Tread Depth
43.00 mm
Max Load (KG)/Speed (KM/H) 1
3650/30
Max Load (KG)/Speed (KM/H) 2
3250/40
Inflation Pressure Bar
1.70
ECE 106
Yes
Warranty
8 YEARS
